Relay 1 Channel 5V High-Low Trigger Relay

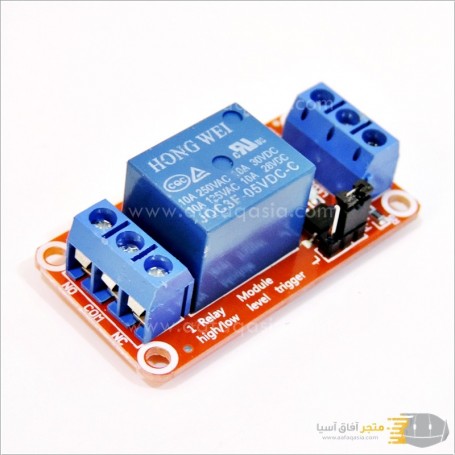

1 Channel 5V Relay Module Board Shield for Arduino with Optocoupler Support High and Low Level Trigger

Maximum load: AC 250V/10A, DC 30V/10A
SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA
The module voltage 5V
The module can be set high or low triggered by jumper

Global, secure and encrypted payment methods with billing systems.

Shipping in less than 24 hours after completing the order.

Description

Product description

Module Description:
Maximum load: AC 250V/10A, DC 30V/10A
SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA
The module voltage 5V
The module can be set high or low triggered by jumper
Fault-tolerant design, even if the control line is broken, the relay will not operate
Power indicator (green), relay state indicator (red)
Interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
Module size: 50mm * 26mm * 18.5mm (L * W * H)
4 mounting bolts holes, hole 3.1mm, 44.5mm * 20.5mm spacing

Module interface
DC +: positive power supply (voltage by relay requirements, 5V.9V.12V and 24V selection)
DC-: negative one
IN: can be high or low level control relay

Relay outputs
NO: normally open relay interfaces, relay before hanging, pull back and COM short-circuited
COM: Relay Common Interface
NC: normally closed relay interfaces, relay and COM short-circuited before, after the pull-vacan
