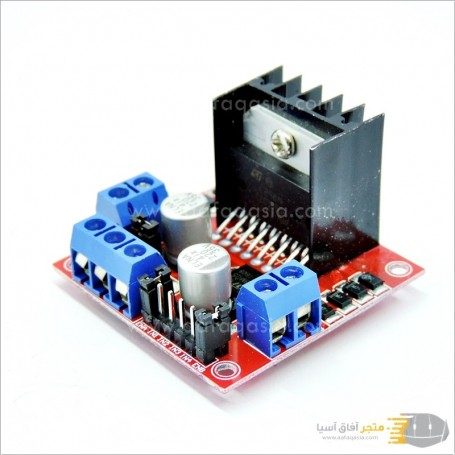

L298N Motor Drive Controller Board Module Dual H Bridge

L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper fit Arduino Electric Projects, Smart Car Robot

  • Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip, Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
  • To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.



1.600 OMR (tax incl.) 1.600 OMR (tax excl.)
No tax Delivered within 1-2 days
warning Last items in stock
Global, secure and encrypted payment methods with billing systems.
Shipping in less than 24 hours after completing the order.

Product description

Specification:

Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Maximum power: 25W
Drive voltage: 5V-35V
Drive current: 2A(For each DC motor)
Operating mode: Dual H-bridge driver (can drive 2 DC motors)

Reason 1: Use L298N for Main Chip

L298N is a kind of high voltage, high current motor driver chip. Features as high working voltage (maximum voltage up to 46V), large output current (instantaneous peak current up to 3A), continuous working current 2A and 25W of rated power. Having 15 pins as package.
Two built-in H Birdge high voltage and large current full bridge drivers can be used to drive the DC motor and stepper motor, relay coil and so on.
The chip can connects to external detecting resistor to give the variations to the control circuit.
Using L298N Chip to drive the motor, the chip can drive a stepping motor or four phase stepping motor, and two DC motors as well. Using standard logic level signal control, it has two enable control ends. It permits or prohibites device having a logic power supply input without the impact of input signal, which enables the internal logic circuit part works at low voltage.

Reason 2: Wide Application

PChero L298N Motor Drive Controller Board Module is ideal for Arduino, Smart Car, Power UNO, MEGA R3, Mega 2560, etc.

Package Included :

L298N Motor Drive Controller Board Module.

90968000082
New product
4.30 cm
4.40 cm
2.70 cm
0.03 kg
9509500000820
850800000829
