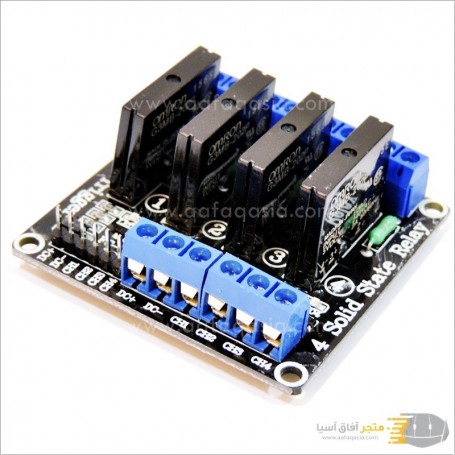

Low level trigger 4-channel 5v Solid State Relay

Low level trigger 4-channel 5v Solid State Relay Module Board SSR

Led indicator for each relay.
Input control signal voltage: 0V - 0.5V Low stage (SSR is OFF), 0.5V - 2.5V (unknown state), 2.5V - 20V High state (SSR is ON); SSR Output (each channel);
Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0.1 to 2 AMP Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

Global, secure and encrypted payment methods with billing systems.

Shipping in less than 24 hours after completing the order.

Description

Product description

Features:
5V solid state relays per channel 250V 2A, output with resistive fuse 250V 2A
4 channel 2 AMP Solid State Relay board Good for lighting- holiday displays etc
The input control signal voltage: (0-0.5V LOW solid state relay OFF) (2.5-20V high solid state relays ON)
Rated output load: 2A at 100 to 240VAC (50/60Hz)
Load voltage range: 75 to 264VAC (50/60Hz)
Load current: 0. 1 to 2 AMP
Power supply: 5VDC / 160mA (all channel ON)
Load type: General purpose
Isolation: Phototriac
Zero cross: Yes
