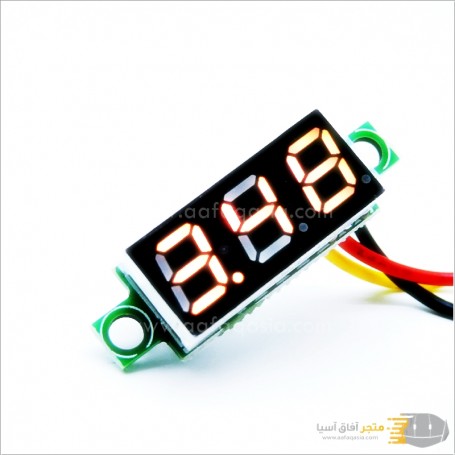

Mini Gauge 3-Wire Display Voltmeter 0.28 inch DC 0-100V
0.28 inch 0.28" 3 Wires Portable Voltmeter Blue Red Green Yellow DC 0-100V Light Digital LED Panel Voltage Meter LED display
Description:
Color: Red/Yellow/Blue/Green/White
Three line Measuring range: DC 0V-100V
Two line measuring range: DC 4-30V
Working current: More than 20Ma
Input range: DC 5-30V
Display: Three 0.28inch digital tube
Dimensions: 24mm * 11mm * 9mm
Perforation size: 23mm * 10.5mm
Refresh rate: 200mS / times
Measurement accuracy: 1%
Operation Temp: -10 - +65 degree
Feature:
1. Three wires digital voltmeter, 0.28" LED display, mini size, with reversal protection.
2. Measure voltage range 0-100V, need DC4-30V external power supply.
Package Included:
1PC * 0.28'' Digital Voltmeter
