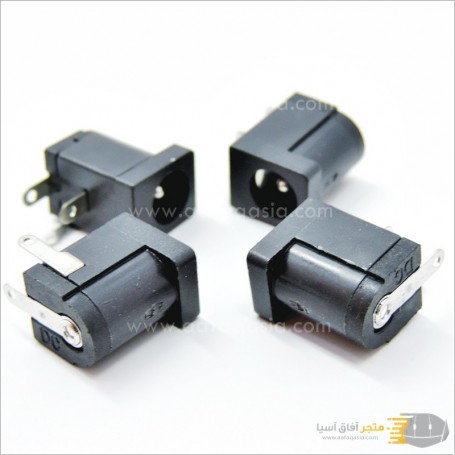

8x DC-005 Power Socket 5.5mm 2.5mm Female

DC Jack DC-005 2.5 DC005 Power Socket 5.5mm 2.5mm Power Female Plug 5.5x2.5MM Supply Jack

Global, secure and encrypted payment methods with billing systems.

Shipping in less than 24 hours after completing the order.

Product Shape: Same as the picture show

1. Size: Hole DIameter: 5.5mm

Pin Diameter: 2.5mm

2. Female DIP Type/Barrel-Type

3. Suitable For 2.5mm Jack 3 Pin Contact

4. Operating temperature range: -40-260 °

5. Rated load: DC 30V 0.5A

6. Contact resistance: ≤ 0.03 ohm

7. Insulation resistance: ≥ 100M ohm DC250V

8. Pressure resistance: AC 500V (50Hz) / Min

9. Insertion force: 3-20N

10. Life: 5000 times

11. High temperature resistant cover and Copper Pin

Package Included:

8pcs
