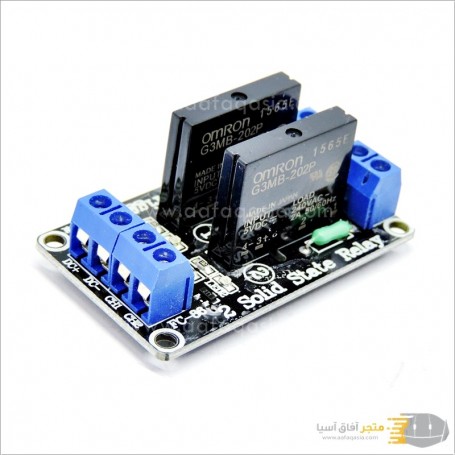

Relay 2 Channel SSR High Level Solid State Relay
5V 2 Channel SSR Solid State Relay Board Power Switch High Level Trigger
- Working Voltage: DC 5V
- Working Current: 160mA
- Input Control Voltage: 0-2.5V(low level,OFF), 3.3-5V(high level, ON)
- Compatible Load: AC 100-240V 2A
- Module Size: 55 X 33 X 25mm/2.17 X 1.30 X 0.98inch(L*W*H)
Product description
This is 2CH SSR board equipped with OMRON solid state relays, fast response and quiet better performance than magnetic-latched relay for AC100-240V 2A loads power control.On-board 240V 2A pico fuse at output end, high-level trigger can be directly controlled by the power positive or the microcontroller I/O port perfect for Arduino Raspberry Pi projects
Specifications:
Working Voltage: DC 5V
Working Current: 160mA
Input Control Voltage:0-2.5V(low level,OFF),3.3-5V(high level, ON)
Compatible Load: AC 100-240V 2A
Module Size: 55 X 33 X 25mm/2.17 X 1.30 X 0.98inch(L*W*H)
