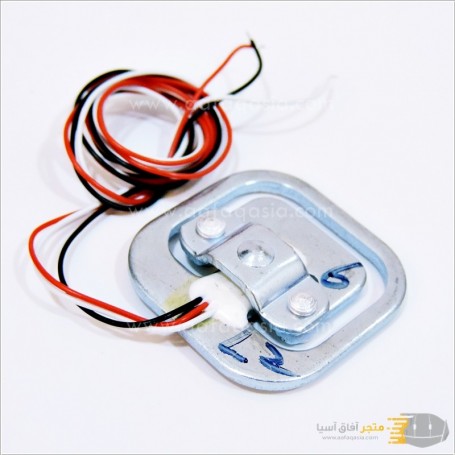

Half Bridge Body Load Cell Electronic Scale Weighing Sensor 50Kg
Half Bridge Body Load Cell Electronic Scale Weighing Sensor 50Kg
Rated load: 50kg.
Rated output: 1.0 ±0.1mV/V.
Nonlinearity: 0.08 %F.S.
Maximum working voltage: 8VDC.
Size:34mm * 34mm.
Global, secure and encrypted payment methods with billing systems.
Shipping in less than 24 hours after completing the order.
Product features
Rated load: 50kg.
Rated output: 1.0 ±0.1mV/V.
Nonlinearity: 0.08 %F.S.
Maximum working voltage: 8VDC.
Size:34mm * 34mm.
Product description
*Rated load: 50kg.
*Rated output: 1.0 ±0.1mV/V.
*Nonlinearity: 0.08 %F.S.
*Hysteresis: 0.1 %F.S.
*Repeatability: 0.05 %F.S.
*Creep(5min): 0.05 %F.S.
*Temperature Effect On Output: 0.02 %F.S/°C.
*Temperature Effect On Zero: 0.02 %F.S/°C.
*Zero balance: ±0.1000 mV/V.
*Input impedance: 1000±20% ohm.
*Output impedance: 1000±10% ohm.
*Insulation resistance: 2000 Mohm.
*Safe Overload: 120 %F.S.
*Ultimate Overload: 150 %F.S.
*Operating temperature range: -20-65°C.
*Recommended Excitation Voltage: 5 VDC.
*Maximum working voltage: 8VDC.
*Level of protection: IP65.
*Material: aluminium alloy.
*Size:34mm * 34mm.
90968000042
New product
3.50 cm
3.50 cm
0.30 cm
0.02 kg
9509500000424
850800000423
