Thermoelectric Cooler Peltier 40*40MM 12V TEC1-12705-12709-12712
Thermoelectric Cooler Peltier 40*40MM 12V Peltier Elemente Module TEC1-12705-12709-12712
TEC1-12705 40*40MM
Chip Type: TEC1-12705
Dimensions: 40 * 40 * 3.8mm element number 127 on
Internal resistance: 2.5 ~ 2.8Ω (ambient temperature of 23 ± 1 , 1kHZ Ac test)
Maximum temperature: Tmax (Qc = 0) over 67 .
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Refrigeration power: Qcmax 50-60W
Working environment: temperature range -55 ~ 83 (high ambient temperatures drop directly affect the cooling efficiency)
Packaging process: four weeks standard 704 silicone rubber seal

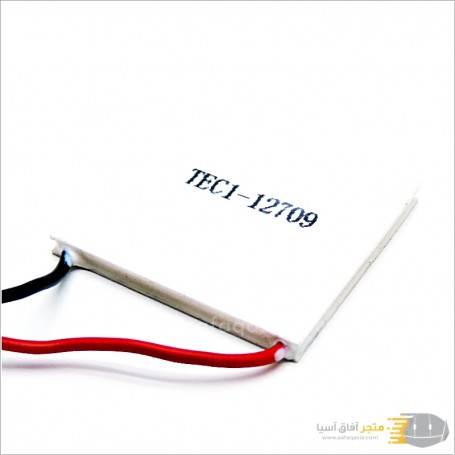

TEC1-12709 40*40MM
Chip Model: tec1-12709
Overall dimensions: 40*40*3.5mm component Logarithm 127 pairs
Wire specification: lead long 300±8mm RV standard conductor single head 5mm tin plating
Internal resistance: 1.4~1.5ω (ambient temperature 23±1°, 1kHZ AC test)
Maximum temperature difference: 62 ° above
Working current: imax=7.1A (max voltage. 5V start 9A)
Rated Voltage: $literal (maximum voltage: 5V)
Cooling power: 86W (high cooling surface temperature will reduce cooling power)
Assembling pressure: 85n/cm2
Working environment: Temperature range -55°~83° (high ambient temperature will directly affect refrigeration efficiency)
Packaging process: Ambient standard 704 Silicone rubber seal
Packaging standards: Foam box packaging, storage conditions ambient temperature -10°~40°
Storage conditions:-40~60°
Power Requirements: Single voltage 12V, current 9A above the working power supply (series and parallel use)
Device characteristics: Red line positive, black line negative (there is literally refrigeration surface, no literal heat dissipation surface)
TEC1-12712 40*40
Type: TECI-12712
Couples: 127
Imax (A): 12
Umax (V):15.4
Qcmax(w) T =0: 109
Tmax (°) Qc=0: 68
Size: 40*40*3.4mm
