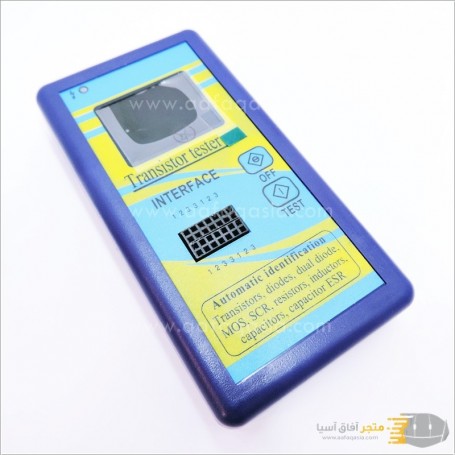

M328 Transistor Tester 128*160 Diode Thyristor Capacitance Resistor Meter 1.8'' LCD
Multi-Purpose M328 Transistor Tester 128*160 Diode Thyristor Capacitance Resistor Inductance MOSFET Meter 1.8'' LCD ESR Digital
Earn 78 points/0.234 OMR
(Each 0.100 OMR spent = 1 point, 1 point = 0.003 OMR discount)Your cart will total 78 points that can be converted into a voucher of 0.234 OMR.
Key features:
128 x 160 TFT color display
Powered by 9V battery (battery not included)
New boot voltage detection
Automatically test the pins of a component and display on the LCD
Measure the gate threshold voltage and gate capacitance of the MOSFET
Measure bipolar transistor current amplification factor and base-emitter threshold voltage
One-button operation, automatic shutdown to avoid unnecessary battery drainage
Short detection time: only 1.7 seconds (it is normal to take 1 minute for bulk capacitor detection)
Reminder: Please make sure that capacitors are discharged before testing.
Specifications
Display: 128 x 160 TFT color display
Normal testing speed: 1.7 seconds
Shutdown current: 20nA
Resistor test range: 0.5 ohms - 50M ohms
Inductor test range: 0.01mH - 20H
Capacitor test range: 25pF - 100000uF
Item size: 135 x 70 x 25 mm (5.31 x 2.76 x 0.98 in)
Item weight: 99g (3.5 oz)
Package includes:
1 x Transistor tester
1 x 14-Pin connector
