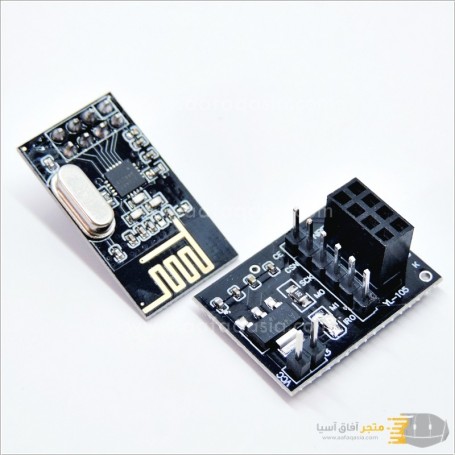

NRF24L01 2.4GHz Wireless RF Transceiver Module + Adapter 8 Pin 3.3V Regulator

NRF24L01 2.4GHz Wireless RF Transceiver Module with NRF24L01 Socket Breakout Adapter 8 Pin Plate Board Breakout Adapter with on-Board 3.3V Regulator

NRF24L01 Wireless Transceiver Module: Built-in 2.4Ghz antenna: available software to set the address, only received local address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers. Compatible with Arduino and Raspberry Pi.

1.200 OMR (tax incl.) 1.200 OMR (tax excl.)
No tax Delivered within 1-2 days
warning Last items in stock
Global, secure and encrypted payment methods with billing systems.
Shipping in less than 24 hours after completing the order.

Product description



NRF24L01 Wireless Transceiver Module:
The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and Enhanced ShockBurst. protocol engine.
125 Communications channels, Multi-point communication and frequency hopping to meet the communication needs.
Built-in hardware CRC error detection, multipoint communication address control.
Low-power 1.9 ~ 3.6V, only 1uA on Power down mode.
Built-in 2.4Ghz antenna.
Support 6 Data channels of data reception.
Standard DIP Pitch Interface for embedded applications.
Available software to set the address, only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.

NRF24L01 Socket Breakout Adapter:
This module can be any one of 51 shop is directly connected to the system board, easy to use.
It's for 8 Pin NRF24L01 Module.
This is a simple socket board which is for NRF24L01 Wireless module. On-board AMS1117-3.3 chip.
Wireless module operating voltage is generally 3.3v, while the ordinary 51 microcontroller 5v, this module is easy to shop wireless module with 51 single system board used in conjunction.
Small power on SMD LED indicator
Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V) These Module are Arduino and Raspberry Pi compatible.

Package Included:
1x NRF24L01 Wireless Transceiver Modules
1x NRF24L01 Socket Breakout Adapters

90968000115
New product
1.60 cm
2.80 cm
1.30 cm
0.01 kg
9509500001155
850800001154
