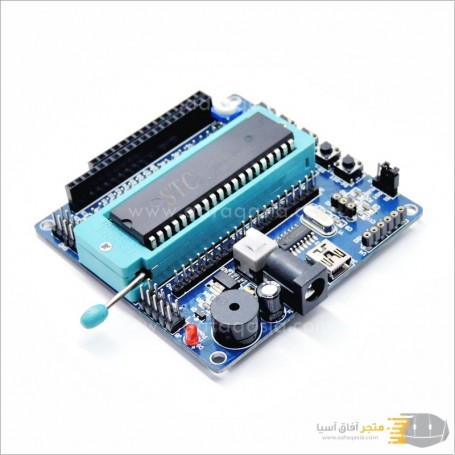

STC89C52 development board 51 MCU learning board AVR
51 MCU development board STC89C52 learning board AVR minimum system AT89S51
1. Product Name: nh5100 development board
2. Main control chip: STC89C52
3. Crystal frequency: 11.0592m/12m
Technical parameters:
1. Product Name: nh5100 development board
2. Main control chip: STC89C52
3. Crystal frequency: 11.0592m/12m
4. Input voltage: DC5V
5. Output voltage: DC5V / dc3.3v
6. Power supply mode: external 5V DC power supply, USB interface power supply
7. PCB size: 73mm * 75mm
Onboard resources:
1. ISP download interface (available when using AT89S52 or ATmega16)
2. Passive buzzer
3. Power switch
4. Power indicator
5. USB communication interface
7. Ch340 communication chip
8. DS18B20 temperature sensor interface
9.38k infrared receiver interface
10. ZIF pluggable chip base
12. LCD1602 LCD interface
13. LCD12864 LCD interface
14.8 bit LED
15. All pins of single chip microcomputer are led out by arranging pins
16. LCD contrast adjustment potentiometer
17.4 independent keys
18.1 reset button
19.4 locating holes
Delivery list:
1x Nh5100 development board
1x 2.30cm USB cable (mini)
