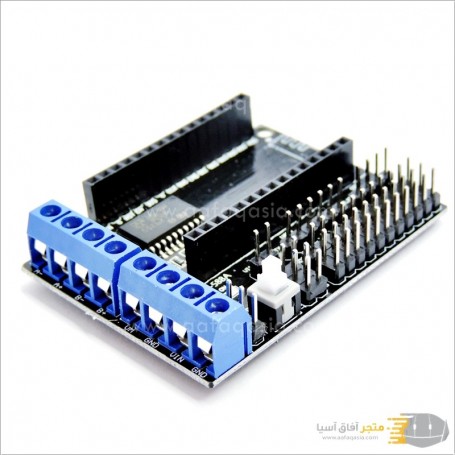

L293D Motor Drive Expansion Board for NodeMCU CP2102

L293D WiFi Motor Drive Expansion Board Shield Module for NodeMCU CP2102

  • Motor power, control power separation; In the experiment, by short-circuiting block the merger, the VIN and VM short, while power to the motor and the control board
  • Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control

2.500 OMR (tax incl.) 2.500 OMR (tax excl.)
No tax Delivered within 1-2 days
check In-Stock
Global, secure and encrypted payment methods with billing systems.
Shipping in less than 24 hours after completing the order.

Product description

Specification:

ESP8266 WiFi Motor Drive Expansion Shield Board For NodeMCU ESP-12E
Motor power supply (VM): 4.5V ~ 36V, can be powered separately
Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately
Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control
Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H)
Drive part of the work current Io: ≤1.2A
Maximum power dissipation: 4W (T = 90 ℃)
Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
Working temperature: -25 ℃ ~ + 125 ℃
Drive Type: Dual high-power H-bridge driver
ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
Expand two-way motor-driven, two-way direct drive motor
Onboard power switch
Motor power, control power separation; In the experiment, by short-circuiting
block the merger, the VIN and VM short, while power to the motor and the control board

90968000084
New product
5.80 cm
4.30 cm
1.30 cm
0.02 kg
9509500000844
850800000843
