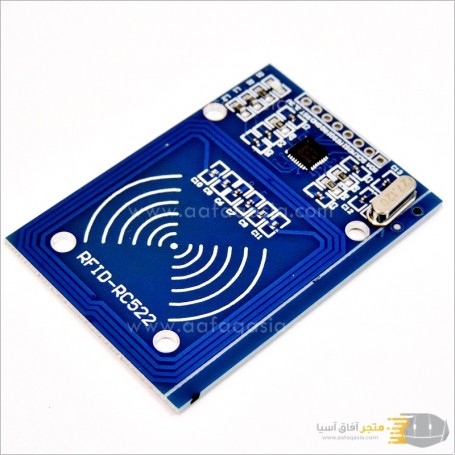

1 Set MFRC-522 RC-522 RFID Reader Module with White Card and Key Chain
1 Set MFRC-522 RC-522 RC522 Antenna RFID Reader Sensor Module with S50 White IC Card and IC Key Chain
- Current :13-26mA / DC 3.3V; Idle Current :10-13mA / DC 3.3V
- Operating Frequency: 13.56MHz; Data Transfer Rate: Max. 10Mbit/s
Product description
Electrical parameters:
Current :13-26mA / DC 3.3V
Idle Current :10-13mA / DC 3.3V
Sleep current: below 80uA
Peak current: below 30mA
Operating Frequency: 13.56MHz
Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
Product Physical Characteristics: Dimensions: 40mm x 60mm/ 1.57in x 2.36in
Environmental Operating temperature: -20-80 degrees Celsius
Environment Storage temperature: -40-85 degrees Celsius
Relative Humidity: 5% -95%
Module Interface SPI Parameters
Data Transfer Rate: Max. 10Mbit/s
Package includes:
1x RFID-RC522 module
1x the standard S50 blank card
1x S50 shaped cards one (as shown keychain shape)
1x straight row pins
1x curved row pins
