شاشة LCD ملونة مقاس 1.8 انش SPI جودة 128*160

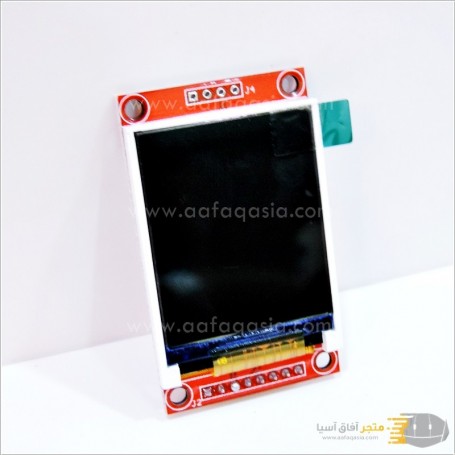

1.8 inch TFT LCD Module LCD Screen Module SPI serial 51 drivers 4 IO driver TFT Resolution 128*160
طرق دفع عالمية، آمنة ومشفرة مع أنظمة الفوترة.
شحن خلال أقل من 24 ساعة بعد اتمام الطلب.
Product Description
- 1.8-inch color screen,support 65K color display,display rich colors
- 128X160 resolution, clear display
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- With SD card slot for convenient function expansion
- Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Product Parameters
| Name | Parameter |
| Display Color | 16BIT RGB 65K color |
| SKU | MAR1801 |
| Screen Size | 1.8(inch) |
| Type | TFT |
| Driver IC | ST7735S |
| Resolution | 128*160 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Backlight | 2 White Led |
| Active Area | 28.03x35.04 (mm) |
| Module PCB Size | 38.30x62.48 (mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 5V/3.3V |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 18 (g) |
90968000010
5.70 cm
3.50 cm
0.90 cm
0.02 kg
9509500000110
850800000102
