Technical Parameters
Range: 1KG
Output sensitivity: 1.0±0.1mV/V
Zero output: ±0.1mV/V
Nonlinear: 0.05% F.S
Lag: 0.05% F.S
Repeatability: 0.05% F.S
Creep: 0.05% F.S/3min
Output impedance: 1000±5% ohms
Zero temperature drift: 0.05% F.S/10°C
Temperature sensitivity drift: 0.05% F.S/10°C
Load cell size: 81*13.5*13.5mm / 3.18*0.53*0.53in
Lead Cable
Motivation is positive: red
Incentive negative: green
Signal is positive: black
signal Negative : white
Note:
Please allow 1-3mm slight deviation due to manual measurement.
One end of the sensor is fixed by the screw hole, the other end is kept in a floating state, and the gravity is applied in the direction indicated by the label.
Special attention must be paid not to directly press the white rubber part to avoid damage to the sensor.

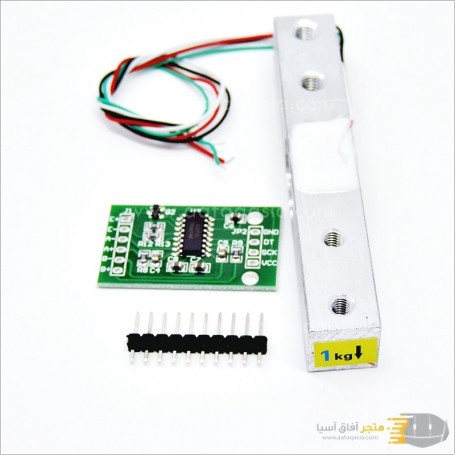

Package included:
1 * Load Cell Weight Sensor
1 * HX711 Module
